Overview

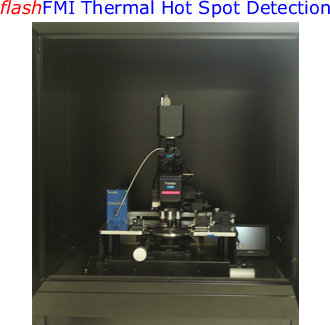

The Reltron flashFMI Thermal Hot Spot Detection system provides the fastest, most economical, high spatial resolution thermal detection system for integrated circuits.

By precisely timing the high-bit depth camera frames relative to modulation of the DUT bias and UV illumination, we can measure the thermal profile of the component at any time interval (>1mS) after the application of power, or the application of a clock, or any desired user event.

Applications

• Short localization
• Temperature profiling
• Heat Diffusion/Spreading

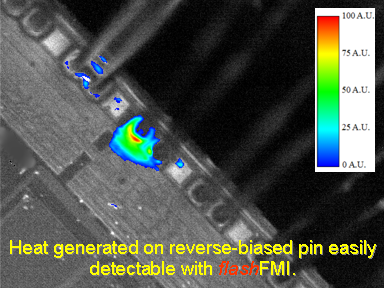

• Hot Spots
• Power Dissipation Studies

The Reltron Advantage

• Low resolution, high cost, IR camera not needed
• Ease of use
• Excellent spatial resolution
• Heat vs. Time capability
• Can use same EMMI CCD camera
• 360nm UV light source can be used for UV Imaging
• Very Economical
• Through-the-lens UV application
• Can use high magnification objectives
• flashFMI Thermal can be added to any existing EMMI system! Call us today for a demo.

Standard Features

• 1.4Mpixel maximum image resolution
• Intuitive flashFMI Software GUI
• MULTIWAVE 6-wavelength SW-controlled Illuminator
• Single channel Keithley power supply and SW IV curve tracer

Optional Features

• 4-channel Keithley DUT power supply and software IV curve tracer
• Custom Dark Box
• Anti-Vibration Table
• Probe Station
• DUT Temperature Controller:  Fast Heating and Cooling Control Chuck
• High Voltage (up to 5KV) DUT Power Supply and software IV curve tracer
